Condition:new

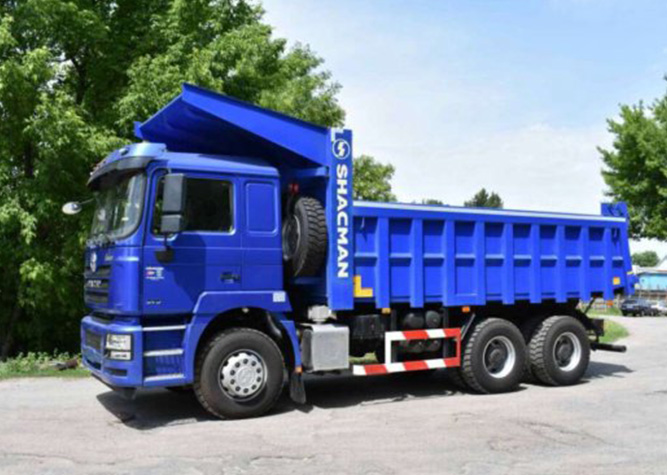

Basic data:Wheel arrangement 6×4 Body volume, cu. m. 15,5 (reinforced dump body) Load capacity, kg 25000 Curb weight, kg 15000
Engine:WEICHAI WP12.375E53 (EURO-5) Number / arrangement of cylinders 6-cylinder in-line turbocharged diesel engine power, kW (hp) 275 (375) displacement, l 11.6 Maximum torque, Nm (rpm) 1800 (1000-1400)
Transmission:Shaanxi Fast Gear 12JS180TA, manual, 12-speed, forward 12 reverse 2, fully synchronized
Suspension:MAN front axle (7.5 t), springs, with hydraulic shock absorbers, with anti-roll bars MAN rear axle (16+16 t), rocker arm, with anti-roll bars, with anti-roll bars, two-stage retarder, inter-axle and inter-axle differential lock
Supply system:Bosch Common Rail Direct fuel injection with common ramp and Bosch injectors Fleetguard air filter, centrifugal, dry type
Clutch:EATON 430mm, dry, single disc with diaphragm spring Hydraulic drive with air booster
Main gear:Two-stage gearbox with wheel planetary reduction Gear ratio 5.262
Brake system:WABCO service brake system, pneumatic, dual-circuit, separate front and rear brakes, drum-type brake mechanisms on all wheels, ABS Brake system mechanical drive from spring accumulators to rear axle wheels Spare braking system engine brake retarder with flap in exhaust system
Tires:315/80R22,5, quarry tubeless
Body lift:Front-mounted hydraulic elevator (behind the cab) Raise platform angle up to 45°
Tipping platform:All-metal U-shaped body with rear unloading, heated with exhaust gas, open-pit type, T700 class material, five longitudinal beams, perimeter and bottom reinforced with corners, elevated rear part, extended protective canopy covering the cab. Platform dimensions length / width / height, mm 5600 / 2300 / 1200 Thickness of the bottom / sides, mm 14 / 10
Dump dimensions:Length / width / height, mm 8329 / 2490 / 3450 Wheelbase, mm 3800 + 1350 Wheelbase front / rear, mm 2036 / 1850 Clearance, mm 314
Other features:Maximum speed, km/h 90 Minimum turning diameter, m 9 Fuel tank capacity, l 380 (with electric heating)
Cabin:German license MAN, insulated, all-metal, two-seater, with one berth. Pneumatic driver’s seat with armrest, climate control, electric windows, heated mirrors, steering column adjustable for tilt and height, wide-angle mirrors, LED daytime running lights, fog lights, MP3/USB radio. Cab suspension – four shock absorbers, rear shock absorbers with hydraulic lock, triplex windshield, three-speed wipers.
